28KW SOLAR PROJECT FOR CLARION UNIVERSITY SCIENCE BUILDING

Architecture Firm: Bohlin Cywinski Jackson

Client: Clarion University

Site: Science & Technology Building

Project Data:

End-User: Science Department

Installer: Evco Mechanical

Location: Clarion Pa.

Date of install: August 2009

Size of system in kW:

Energy produced since installation

Special Challenges Met:

Project Brief

Project Summary: We designed, supplied and managed the construction of a 28kW Solar Energy System for Clarion University. I produced a well coordinated self ballasted mono crystalline solar PV System based upon the Solar World SW175 Module and a PV Powered 30kW PV Inverter. Working closely with Bohlin Cywinski Jackson's Structural Engineer, a distributed deadload was agreed to comply with wind uplift calculations we worked out a safe, maintenance free solution for the New Science Building.

Figure 1: Aerial Photo showing completed building with 28kW self-ballasted solar array mounted on west roof.

Figure 1: Aerial Photo showing completed building with 28kW self-ballasted solar array mounted on west roof.

Figure 2: South Elevation of completed building by Bohlin Cywinski Jackson Architects.

Figure 2: South Elevation of completed building by Bohlin Cywinski Jackson Architects.

Figure 3: Colored bars represent modules in electrical series in order to achieve a maximum of 600 Volts.

Figure 3: Colored bars represent modules in electrical series in order to achieve a maximum of 600 Volts.

Figure 4: This project deployed a simple bracket and concrete pavers as ballast.

Figure 4: This project deployed a simple bracket and concrete pavers as ballast.

Figure 5: Cable management and maintenance access are provided with a 5 degree tilt angle.

Figure 5: Cable management and maintenance access are provided with a 5 degree tilt angle.

Figure 6: The Module layout allows for some shading from the mechanical penthouses.

Figure 6: The Module layout allows for some shading from the mechanical penthouses.

Figure 7: Grounding and Ballast attachment details.

Figure 7: Grounding and Ballast attachment details.

Figure 8: Electrical Diagram showing grid connected inverter and monitoring system.

Figure 8: Electrical Diagram showing grid connected inverter and monitoring system.

Figure 9: Rigging Plan accommodates maximum recommended loading of the structure as recommended by structural engineer.

Figure 9: Rigging Plan accommodates maximum recommended loading of the structure as recommended by structural engineer.

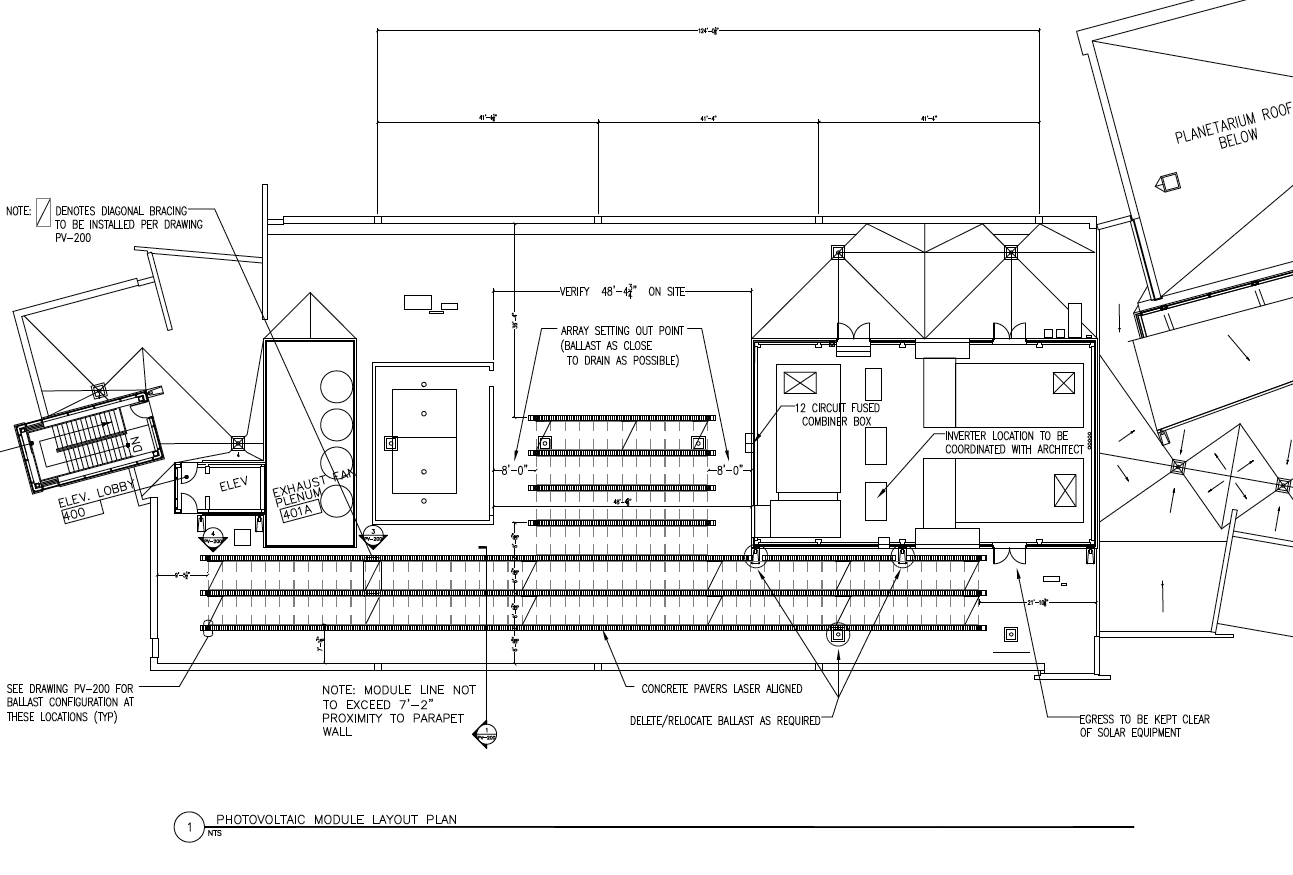

Figure 10: Module Layout shows adjacency to roof crickets.

Figure 10: Module Layout shows adjacency to roof crickets.
